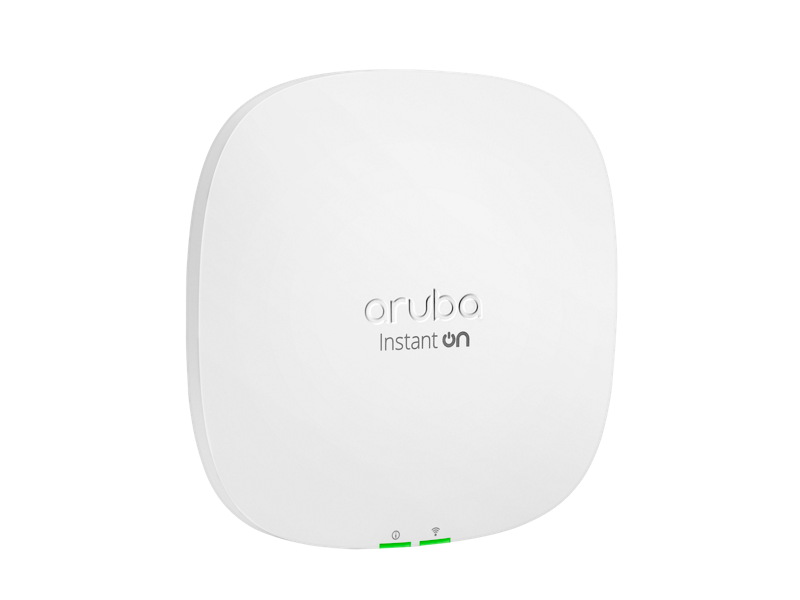

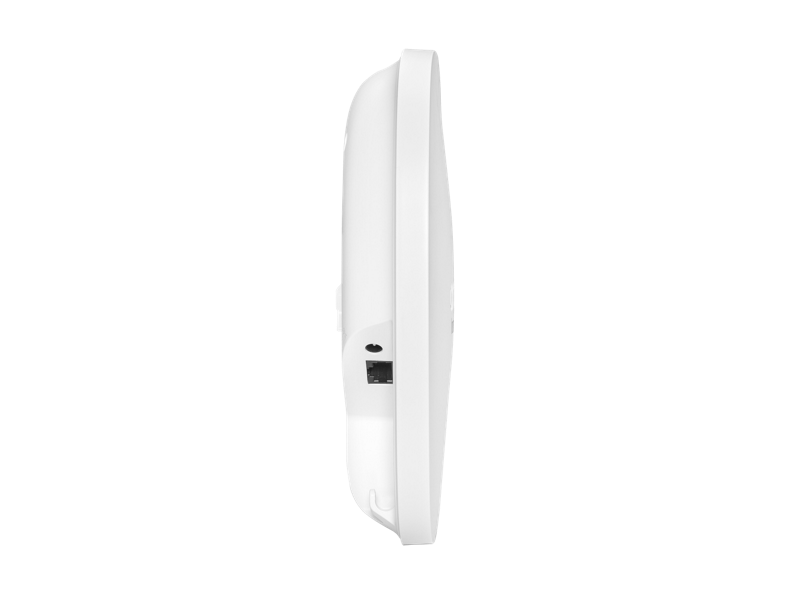

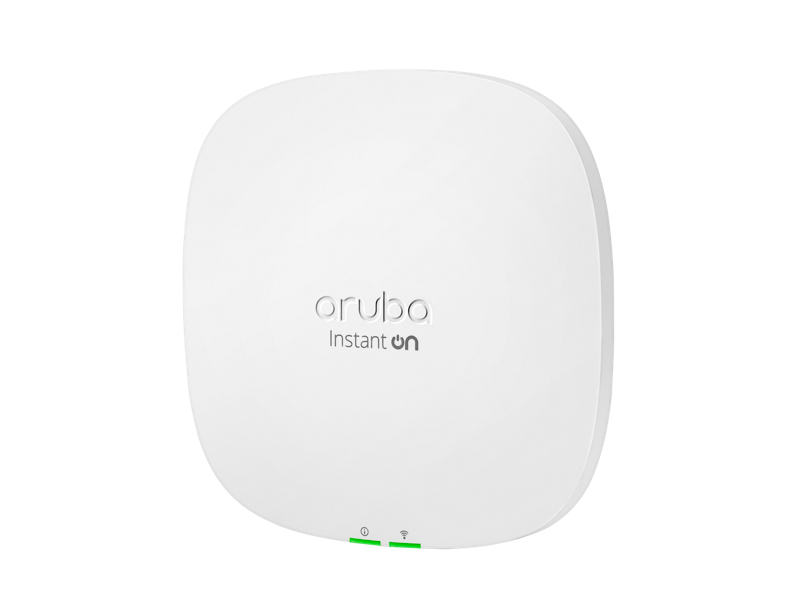

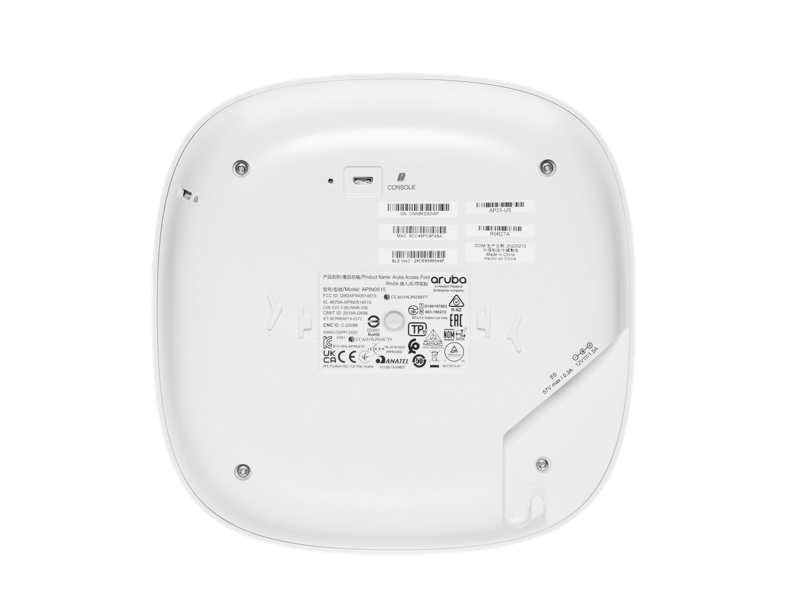

Aruba Instant On AP25 Access Point
Wi-Fi 6 Access Point for Small and Growing Businesses
Dual-radio 802.11ax access point delivering up to 5.3 Gbps aggregate data rates with WPA2/WPA3 security and simple mobile-app or cloud management — built for device-dense small and growing business environments.
Quick Specifications
- Wi-Fi Standard Wi-Fi Certified 6 (802.11ax), WPA2/WPA3
- Aggregate Peak Data Rate Up to 5.3 Gbps
- 5 GHz Radio 4x4 MIMO, up to 4.8 Gbps
- 2.4 GHz Radio 2x2 MIMO, up to 574 Mbps
- Channel Bandwidth Up to 160 MHz (HE160)
- Uplink Port 2.5 Gigabit Ethernet, PoE-in (802.3at)
Key Features
Wi-Fi 6 Efficiency
Supports OFDMA, MU-MIMO and Target Wake Time (TWT) for higher client density and improved device battery life.
4x4 MIMO Performance
Four spatial streams and 160MHz channel bandwidth deliver up to 4.8 Gbps on the 5GHz band.
2.5G Ethernet Uplink
A 2.5 Gigabit uplink port removes the bottleneck between the access point and the wired network.
WPA2/WPA3 & Enhanced Open
Integrated Wi-Fi Alliance security standards plus two-factor authentication for protected wireless access.
Up to 8 SSIDs
Segment employee, guest and IoT traffic under a single access point with up to eight SSIDs.
Simple App/Cloud Management
Configure and monitor the network from the Aruba Instant On mobile app or cloud-based web portal — no dedicated controller required.
Specifications
| Wi-Fi Standard | Wi-Fi Certified 6 (802.11ax), WPA2/WPA3 |
| Aggregate Peak Data Rate | Up to 5.3 Gbps |
| 5 GHz Radio | 4x4 MIMO, up to 4.8 Gbps |
| 2.4 GHz Radio | 2x2 MIMO, up to 574 Mbps |
| Channel Bandwidth | Up to 160 MHz (HE160) |
| Uplink Port | 2.5 Gigabit Ethernet, PoE-in (802.3at) |
| Power | PoE 802.3at (class 4): 20.1W max; DC (12V): 15.9W max |
| Bluetooth | Low Energy (BLE) radio |
| Certifications | Wi-Fi Alliance 802.11ax, WPA2, WPA3; EN 60601-1-1/1-2 (medical environments) |
| Management | Aruba Instant On mobile app or cloud web portal |
| Warranty | 2-year, with 24x7 phone support (first 90 days) plus chat support for the warranty period |
Benefits
- Faster Wi-Fi with greater capacity and lower latency
- No dedicated wireless controller required
- Simple setup via mobile app or web portal
- Backward compatible with 802.11a/b/g/n/ac clients
- Improved IoT and mobile device battery life via TWT
- Integrated router, gateway and firewall functionality
Typical Applications
Common Use Cases
Full Technical Detail
Download the Full Datasheet
Complete specifications, integration reference and deployment guidance are provided in the product datasheet rather than on this page. It covers:
- Full radio, antenna and throughput specifications
- Ports, power and mounting reference
- Security and management feature overview
- Warranty and support options
Why Unified Microsystems?
Unified Microsystems supplies and deploys Aruba Instant On access points for small and growing business sites, handling site design, mobile app or cloud onboarding and ongoing support, backed by regional stock availability and lead-time guidance.
